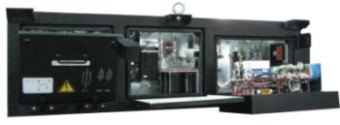

Static converter CASV - 10
Static converter for passenger coaches

technical specifications
  Input voltage : 1500 Vac (1150V ... 1750V)
    Frequency: 50Hz (±2%)
    Maximum current (at Umin = 1150Vac): 12 A
  Output voltage : 230Vac / 50Hz
    Sinusoidal waveform THD <3%
    Rated power : 10kVA
  IP56 protection degree

references
  Code UIC, 550 OR, Installations pour l'alimentation en énergie électrique du matériel a voyageurs.

dimensions
  L x l x h = 1510 x 560 x 450 mm
  weight = 315 kg
