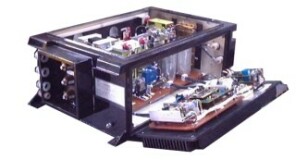

| Static converter SIF 750-E-28V | ||||||||
|
||||||||
The
static converter for tramcar auxiliary services is designed for
the charging of the vehicle's batteries and supplying its consumers
with 28Vcc. It is designed with IGBT technology, working at
a high frequency based on PWM with DSP; the voltage is kept constant
at the batteries terminals, compensating voltage failures on various
devices. |
||||||||
| technical specifications | ||||||||
 |
Input voltage: 750 Vdc (600Vdc) | |||||||
| Voltage accuracy: -30%...+40% | ||||||||
| Maximum current < 15Adc | ||||||||
|
Output voltage: 28Vdc (±2%) | |||||||
| Output current: 120Adc | ||||||||
| Output voltage control range: 25.5 ... 29.5Vdc | ||||||||
| Output current control range: 10 ... 40Adc (±10%) | ||||||||
|
Total limited current: 200Adc (±10%) | |||||||
|
Efficiency > 85% | |||||||
|
IP65 protection degree | |||||||
| characteristics | ||||||||
|
Texas Instruments DSP-based control unit (TMS320F240 platform) | |||||||
|
Diagnosis and maintenance software | |||||||
| dimensions | ||||||||
|
L x l x h = 700 x 500x 344 mm | |||||||
|
weight = 100 ± 3 kg | |||||||
